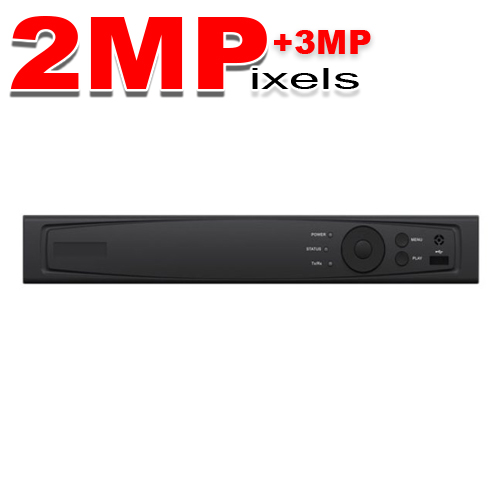

(IPS-TVIDVR83) TVI HD 2MP / 2CH 3MP 8 Channel DVR
- H.265+/H.265/H.264+/H.264 Video Compression
- Support HDCVI, HDTVI, AHD, and Analog Cameras with adaptive access
- 2-Ch, 4 MP IP cameras input, 2-Ch 3MP HD-TVI
- Full Channel@1080PLite resolution real-time recording
- VGA and HDMI output up to 1080p
- Long transmission distance over coax cable
- Support up to 8 Ch. synchronous playback
| Video compression | H.264 / H.264+ /H.265 / H.265+ |
| Analog, AHD, HD-TVI and HD-CVI video input | 8 Ch., BNC interface (1.0Vp-p, 75Ω) |
| HDTVI Input | 3 MP, 1080p, 720p Note: The 3 MP signal input is only available for channel 1/2 |
| AHD Input | 1080p, 720p |
| HDCVI Input | 1080p, 720p |
| CVBS Input | PAL/NTSC |
| IP Video Input | 2CH, Up to 4MP Resolution / Supports H.265+/H.265/H.264+/H.264 IP cameras |
| Audio compression | G.711u |
| Audio input / Two-way audio in | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Video Output | 1 HDMI, 1 VGA, 1 CVBS |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| VGA output | 1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
| HDMI output | 1920×1080@60Hz, 1280×1024@60Hz, 1280×720@60Hz, 1024×768@60Hz |
| Encoding resolution | When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIFWhen 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Frame rate | Main stream: When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fpsFor 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)@30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)@30fps (N) When 1080p Lite mode enabled: 3 MP@15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)@30fps (N) Sub-stream: When 1080p Lite mode not enabled: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video bitrate | 32 Kbps to 6 Mbps |
| Audio output | 1 Ch., RCA (Linear, 1KΩ) |
| Audio bitrate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video & Audio |
| Synchronous playback | 8 Ch. |
| Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| SATA | 1 SATA interface |
| Capacity | Up to 10TB capacity |
| Network interface | 1; 10M / 100M self-adaptive Ethernet interface |
| Serial interface | 1 x RS-485 serial interface |
| USB port | 2 × USB2.0 |
| Power supply | 12 VDC |
| Consumption (without hard disks) | ≤ 7.5W |
| Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working humidity | 10% ~ 90% |
| Dimensions | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight (without hard disks) | 3.9 lb |
