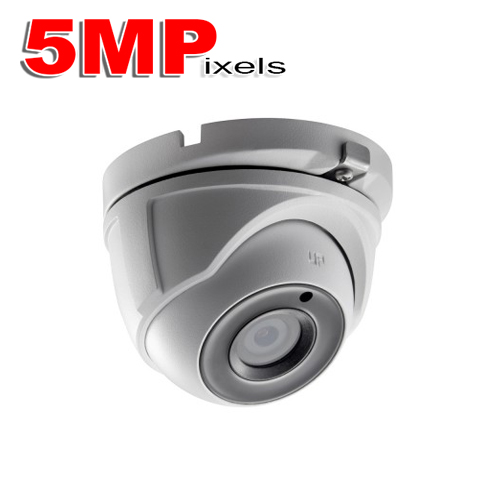

(IPS-2CE56H5T-ITM) 2.8mm Lens IVMS 5MP HD 4-in-1 Exterior IR Turret Camera
- 5MP Video Output
- HD 4-in-1 Technology (TVI/CVI/AHD/CVBS)
- OSD menu, DNR, Smart IR
- 60 ft IR distance
- IP67 weatherproof
- DWDR
| Image Sensor | 5MP CMOS |
| Video Format | PAL / NTSC |
| Effective Pixels | 2560(H)*1944(V) |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/30s to 1/50,000 s |
| Lens | 2.8mm optional |
| Angle Adjustment | Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360° |
| Day & Night | ICR |
| Video Frame Rate | 2560*1944 @ 20fps |
| HD Video Output | 1 BNC output (TVI/CVI/AHD/CVBS) |
| CVBS Output | Support |
| D/N Mode | Color / BW / Auto |
| Functions | DWDR, DNR, Mirror, Smart IR |
| WDR | DWDR |
| Working Temperature / Humidity | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC±25% |
| Power Consumption | Max. 4.3W |
| Weather Proof Ratings | IP67 |
| IR Range | Up to 60 ft |
| Communication | OSD (UTC Control) via DVR |
| Dimensions | 89.6 × 59.1 mm (3.58” × 3.25” x 2.69″) |
| Weight | 400 g (0.77 lb) |
