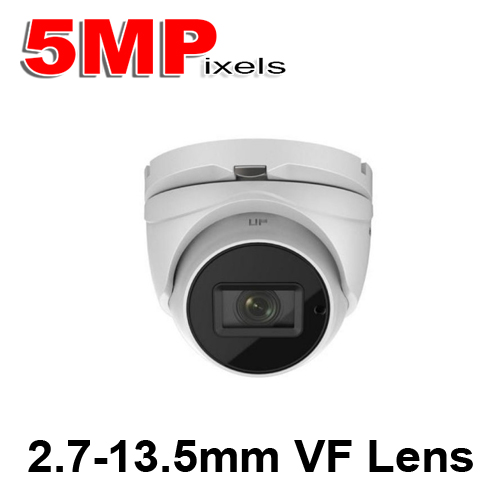

(IPS-2CE56H5T-IT3Z) IVMS HD 4-in-1 5MP Turbo HD Outdoor Motorized Vari-focal EXIR Turret Camera
- HD 5MP Video Output
- HD 4-in-1 Technology(TVI/CVI/AHD/CVBS)
- True Day/Night
- 2.7 – 13.5mm vari-focal lens
- Motorized Vari-Focal Lens
- EXIR
- OSD menu, DNR, Smart IR
- Up to 120ft IR distance
- DWDR
| Image Sensor | 5MP CMOS |
| Video Format | PAL / NTSC |
| Effective Pixels | 2560(H)*1944(V) |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter speed | 1/30 s to 1/50,000 s |
| Lens | 2.7-13.5mm @ F1.2 Motorized, Angle of view: 95.7° – 29.1° |
| Day & Night | ICR |
| Wide dynamic range | DWDR |
| Synchronization | Internal synchronization |
| Video Frame Rate | 2560*1944@20fps |
| HD Video Output | 1 Analog HD output(TVI/CVI/AHD/CVBS) |
| CVBS Output | Support |
| AGC | Support |
| D/N Mode | Color/BW/Smart |
| White Balance | ATW, MWB |
| BLC | Support |
| Working Temperature / Humidity | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC |
| Power Consumption | Max. 9W |
| Weather Proof Ratings | IP67 |
| IR Range | Up to 120 ft |
| Communication | Up the coax(need UTC controller) Protocol: Pelco-C(Coaxitron) |
| Dimensions | 5.29″ x 4.88″ x 4.39″ |
| Weight | 700 g (1.57 lbs) |
