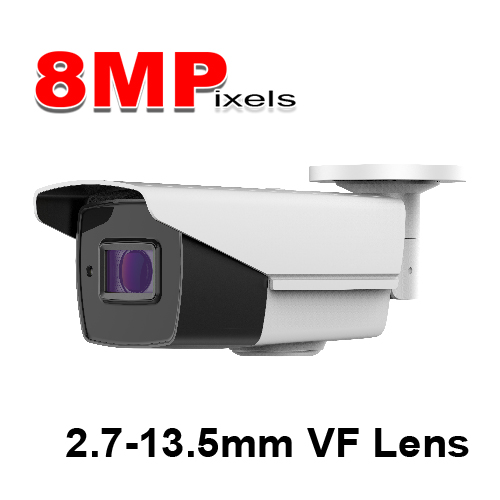

(IPS-2CE19U1T-AIT3Z) IVMS 4-in-1 8MP Turbo HD Outdoor Motorized Vari-focal EXIR Bullet Camera
- 8MP Video Output
- 4-in-1 output. TVI, CVI, AHD, CVBS
- 105dB
- True Day/Night
- 2.7 – 13.5mm vari-focal lens
- Motorized Vari-Focal Len
- EXIR
- OSD menu, 3D DNR, Smart IR
- Up to 240ft IR distance
- Up the Coax (control over coax)
| Image Sensor | 8.29MP CMOS Sensor |
| Video Format95 | PAL / NTSC |
| Effective Pixels | 3840(H)*2160(V) |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter speed | 1/15 s to 1/50,000 s |
| Lens | 2.7-13.5mm @ F1.2, Angle of view: 108.1° – 45.6° |
| Lens Mount | φ14 |
| Day & Night | ICR |
| Wide dynamic range | 105dB True WDR |
| Synchronization | Internal synchronization |
| Video Frame Rate | TVI: 8MP @ 15FPS, 5MP @ 20FPS, 4MP @ 30FPS CVI: 8MP @ 15FPS, AHD: 5MP @ 20FPS |
| HD Video Output | 1 Analog HD output |
| CVBS | No |
| Scene | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| AGC | Support |
| D/N Mode | Color/BW/EXT |
| White Balance | ATW, AWC-SET, Indoor, Outdoor, Manua |
| BLC | Support |
| S/N Ratio | More than 52db |
| Function | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
| Working Temperature / Humidity | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply | 12VDC, 24VAC |
| Power Consumption | Max. 10.8W |
| Weather Proof Ratings | IP67 |
| IR Range | Up to 240 ft |
| Communication | Up the coax(need UTC controller) Protocol: Coaxitron-C(Coaxitron) |
| Dimensions | 3.33″ x 3.62″ x 10″ |
| Weight | 1.53 lbs |
