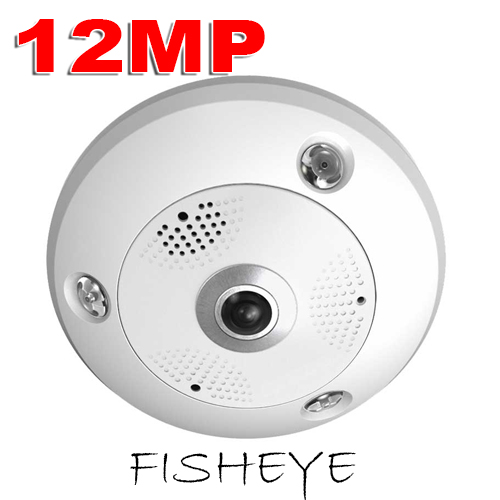

(IPS-2CD63C2F-IVS) 12MP Fisheye, Exterior Dome Camera
- 1/1.7” progressive scan CMOS
- 12 mega-pixel image sensor
- Up to 4000 x 3072 real-time streaming
- 360° view angle
- Multiple viewing modes
- Multiple ePTZ streams with preset and patrol functions
- Alarm and Audio.
- Up to 30ft IR range
- Built-in microphone & speaker. Audio/Alarm IO and RS485
| Image Sensor | 1/1.7” progressive scan CMOS |
| Min. Illumination | 0.05 lux @ (F1.2, AGC ON) 0.3 lux @ (F2.8, AGC ON ) 0 lux with IR |
| Shutter Speed | 1/25 (1/30)s ~ 1/100,000s |
| Lens | 1.19mm @F2.8, angle of view: 360° |
| Lens mount | M12 |
| Day & Night | ICR |
| Video Compression | H.264/MJPEG |
| H.264 Type | Baseline Profile / Main Profile / High Profile |
| Video Bit Rate | 32 Kbps – 16 Mbps |
| Max. Resolution | 12MP CMOS (4000×3072) |
| Frame Rate | 20fps (4000×3000), 30fps (4096×2160) |
| Number of Streams | High Frame Rate Mode: 1 or 2 Multi-Channel: up to 5 (No sub-streams) |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | Digital WDR |
| Image Setting | Saturation, Brightness, Contrast, Hue, Sharpness, AGC, White Balance |
| High Light Compensation | Support |
| Day/night Switch | Auto / Manual / Scheduled / Alarm trigger |
| Network Storage | NAS, SAMB / CIFS |
| Alarm I/O | 1/1 |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Audio I/O | 1/1 |
| Standard | ONVIF, PSIA, CGI |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port 1 RS-485 interface (-S) |
| On-board storage | Built-in Micro SD/SDXC slot, up to 64 GB |
| Operating Conditions | -30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply | DC12V±10% / PoE |
| Power Consumption | Max. 11W |
| IR range | Max. 30ft |
| Protection | IK10 |
| Dimensions | Φ6.46” × 1.79” |
| Weight | 3.08 lb |
