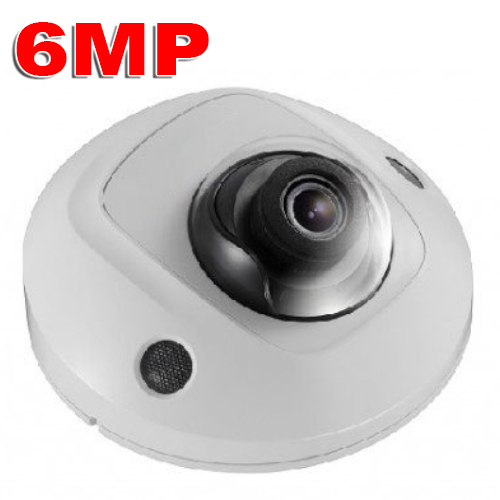

(IPS-2CD2563G0-IS) 6 MP WDR Fixed, Vandal-Proof Mini Dome W/ Audio, Exterior
- Up to 6 megapixel (3072 x 2048) resolution
- Full HD 4MP real-time video
- Built in Mic
- True WDR & 3D DNR & BLC
- On-board storage (up to 128 GB)
- IP66 & IK08 protection
- Vandal-proof housing
| Image sensor | 1/2.9” progressive scan CMOS |
| Min. illumination | 0.01lux @ F1.2, AGC on, 0 lux with IR |
| Shutter time | 1/30s ~ 1/100,000s |
| Lens | 2.8mm @ F2.0 (OPTIONAL: 4mm/6mm) |
| Day & night | ICR |
| Digital noise reduction | 3D DNR |
| Wide Dynamic Range | True WDR, 120db |
| Video compression | H.264 / MJPEG / H.264+ / H.265 / H.265+ |
| Alarm | 1/1 |
| Audio | 1/1 |
| Max. image resolution | 3072 x 2048 |
| Frame rate | 20fps (3072 x 2048) |
| Alarm trigger | Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception, storage error |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos |
| System compatibility | ONVIF, PSIA, CGI |
| General functionalities | Flickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark |
| Communication interface | 1 RJ45 10M / 100M ethernet port |
| On-board storage | Built-in Micro SD card slot, up to 128 GB |
| Operating conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F), humidity 95% or less (non-condensing) |
| Power supply | DC12V ± 10%, PoE (802.3af) |
| Power consumption | Max. 9.5W |
| Ingress protection level | IP66, IK08 |
| IR range | Up to 30ft |
| Dimensions | ∅4.33″ x 2.22″ |
| Weight | 250g (0.88 lbs) |
