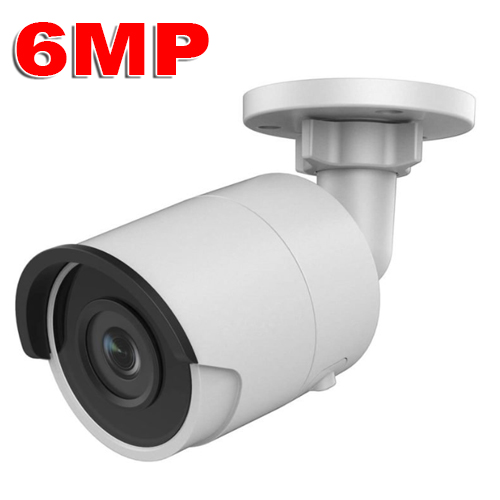

(IPS-2CD2063G0-I) 6MP True WDR IR Mini Bullet Camera
- 6 Megapixel High Resolution
- Full HD Video Output
- Low Illumination
- 3D DNR; True WDR; BLC
- IP67 Rating
- IR Range: up to 100ft
- True Day / Night
| Image Sensor | 1/2.9″ progressive scan CMOS |
| Min. illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter time | 1/3s ~ 1/100,000s |
| Lens | 4mm @ F2.0 (2.8mm optional) Angle of view: 63.5° (81° for 2.8mm) |
| Day & night | IR cut filter with auto switch |
| Digital noise reduction | 3D DNR |
| Wide dynamic range | 120dB WDR |
| Video compression | H.265 / H.265+ / H.264+ / H.264 / MJPEG |
| Max. Image Resolution | 3072 x 2048 |
| Frame rate | 20fps (3072×2048), 20fps(2560×1440) |
| Image settings | Saturation, brightness, contrast, sharpness adjustable through client software or web browser |
| Network storage | Support microSD/SDHC/SDXC card (128Gb) local storage, NAS (NFS,SMB/CIFS), ANR |
| Alarm trigger | motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos |
| Security | User Authentication, reset button, flickerless, dual stream, heartbeat, mirror, watermark |
| Communication interface | 1 RJ45 10M/ 100 M Ethernet interface |
| Operating conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power supply | 12 VDC +/- 25%, PoE (802.3af) |
| Power consumption | Max 6W, PoE(802.3af, class 3), 7W |
| Weather proof rating | IP67 |
| IR range | UP to 100ft |
| Dimension | Φ2.76″ × 6.1″ |
| Weight | 0.9lbs |
