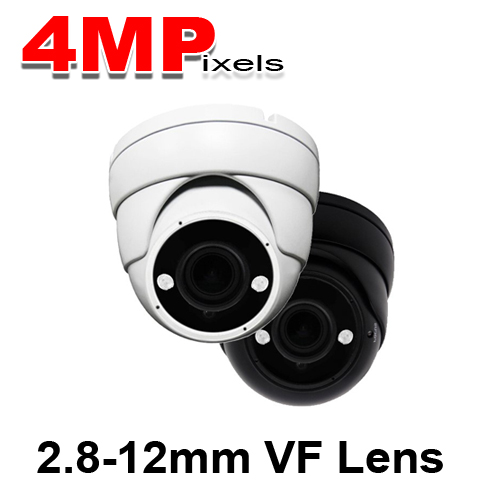

(IPS-420D (W/B)) 4MP Motorized Vandal IR Dome w/ 2.8-12MM Lens, Plug n Play with Hikvision & Dahua PoE Built In
* Hi3516D+IMX326
* 4MP 15fps@4Mp
* 2.8-12MM Motorized Lens
* ONVIF 2.4 / IPCAM
* 2 PCS IR Leds
* PLUG N PLAY WITH IPCAM PROTOCOL
* Built in PoE
| Image Sensor | Hi3516D+IMX326 | ||||
| Effective Pixels | 4MP (Mega-pixel), (2688×1520) | ||||
| Lens | 2.8-12MM Motorized Lens | ||||
| IR Leds | 2 PCS IR Leds | ||||
| IR Distance | 25-30M | ||||
| Min. Illumination | 0 Lux When IR ON | ||||
| Video Standard | ONVIF 2.4 / IPCAM | ||||
| FTP | Support Timing Video Upload, Timing Snapshot(software) | ||||
| Compression Output Rate | 32K~8Mpbs adjustable | ||||
| Video Compression | H.265/H.264 Optional in OSD | ||||
| Concurrent Dual-stream | H.264 | ||||
| Frame Rate | 15fps @ 4MP, 25/30fps @ 3MP | ||||
| Supporting Protocols | HTTP, TCP, RTSP , RTP, ICMP, UDP, IGMP V3 , RTCP, FTP, DNS, Bonjour, ARP, NTP | ||||
| Privacy Mask | 4 Zones | ||||
| Motion Detection | YES | ||||
| DNR | Auto (fixed) | ||||
| Audio | 1 Audio out / 1 Audio in | ||||
| Linakage Alarm | Video Loss/Motion Detection/PIR ( Set the area and sensitivity) | ||||
| Communication Port | 1 RJ4510M/100M Adaptive Ethernet Port | ||||
| White Balance | Auto (software) | ||||
| Gain Control | Auto (software) | ||||
| Image Adjustment | Saturation/Brightness/Contrast/Sharpness/Color adjustable | ||||
| Power Supply | DC12V | ||||
| Power Consumption | <6W | ||||
| Operating Temp. | -20 ºC~+50 ºC | ||||
| PoE | PoE (IEEE 802.3.af) |
