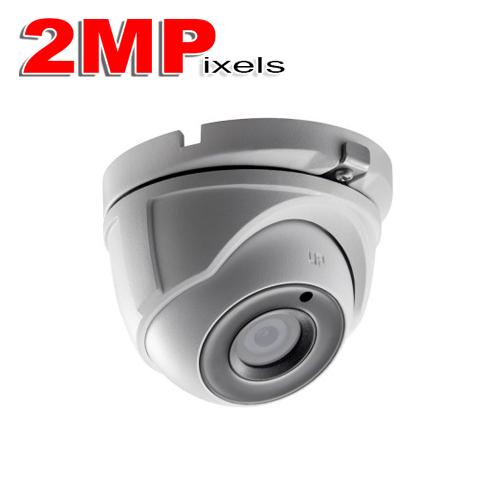

(IPS-2CE56D7T-ITM ) 2.8mm, 3.6mm or 6mm Lens IVMS 2MP HD-TVI Exterior IR Turret Camera
- 2MP Video Output
- HDTVI Technology
- OSD menu, 3D DNR, Smart IR
- 65 ft IR distance
- IP66 weatherproof
- Up the Coax (control over coax)
- True WDR
| Image Sensor | 2MP CMOS Sensor |
| Video Format | PAL / NTSC |
| Effective Pixels | 1928(H)*1088(V) |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25s to 1/50,000 s |
| Lens | 3.6mm (2.8mm, 6mm optional), Angle of View: 80.9°(3.6mm), 103.5°(2.8mm), 54.3°(6mm) |
| Angle Adjustment | Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360° |
| Day & Night | ICR |
| Video Frame Rate | 1080@ 30fps |
| HD Video Output | 1 HD-TVI output |
| CVBS Output | N/A |
| D/N Mode | Color / BW / Smart |
| Functions | WDR, DNR, Mirror, Smart IR |
| WDR | 120dB True WDR |
| Working Temperature / Humidity | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC±10% |
| Power Consumption | Max. 5W |
| Weather Proof Ratings | IP66 |
| IR Range | Up to 65 ft |
| Communication | OSD (UTC Control) via DVR |
| Dimensions | 3.58” ×3.25” × 2.69” |
| Weight | (0.77 lb) |
