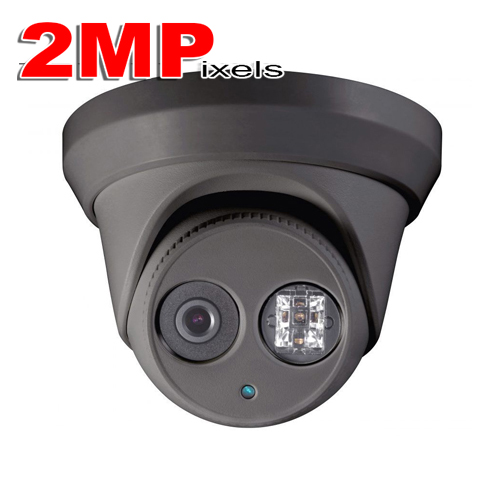

(IPS-2CE56D0T-IT32B) IVMS HD-TVI 1080P EXIR Turret Camera
- HD1080P Video Output
- HDTVI Technology
- OSD menu
- 120 ft IR distance
- IP66 weatherproof
- Up the Coax (control over coax)
- DWDR
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL / NTSC |
| Effective Pixels | 1920(H)*1080(V) |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/30s to 1/50,000 s |
| Lens | 2.8 mm @ F1.4 Angle of View: 103° |
| Angle Adjustment | Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360° |
| Day & Night | ICR |
| Video Frame Rate | 1080p @ 30fps |
| HD Video Output | 1 HD-TVI output up to 1200ft with RG59U 95% |
| CVBS Output | N/A |
| Working Temperature / Humidity | -20 °C – 45 °C (-4 °F – 113 °F) Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC+15% |
| Power Consumption | Max. 4W |
| Weather Proof Ratings | IP66 |
| IR Range | Up to 120 ft |
| Communication | OSD (UTC Control) via DVR |
| Dimensions | θ4.99″x4.03″ |
| Weight | 0.57lbs |
