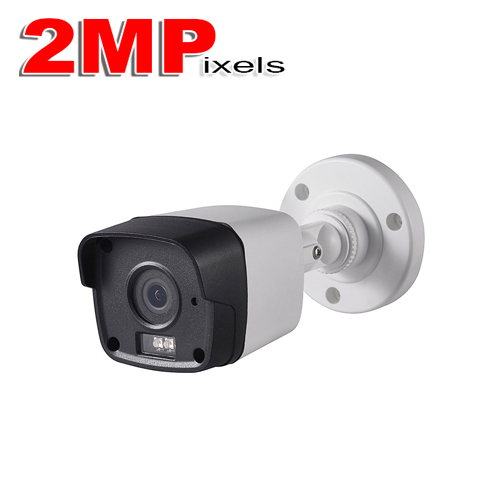

(IPS-2CE16D7T-IT) IVMS HD-TVI 2MP Exterior IR Bullet 3.6mm Lens
- 2MP video output
- HD-TVI Technology
- True WDR, up to 120dB
- True Day/Night
- OSD menu, 3D DNR, Smart IR
- 65 ft IR distance
- IP66 weatherproof
- Up the Coax (control over coax)
| Image Sensor: | 2MP CMOS Sensor | |
| Video Format | PAL/NTSC | |
| Effective Pixels: | 1928(H)*1088(V) | |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| Shutter Time | 1/25 s to 1/50,000 s | |
| Lens: | 3.6mm (2.8mm optional) |
|
| Adjustment Range: | Pan: 0 – 360°, Tilt: 0 – 90° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | True WDR, 120dB | |
| Video Frame Rate: | 1080p @30fps | |
| HD Video Output: | 1 HD-TVI output | |
| CVBS Output | N/A | |
| D/N Mode | Color/BW/Smart | |
| Working Temperature / Humidity | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 V DC±15% | |
| Power Consumption: | Max. 5W | |
| Weather Proof: | IP66 | |
| IR Range | Up to 65 ft | |
| Dimensions | 2.3″ x 2.19″ x 6.05″ | |
| Weight: | 0.82 lbs |
