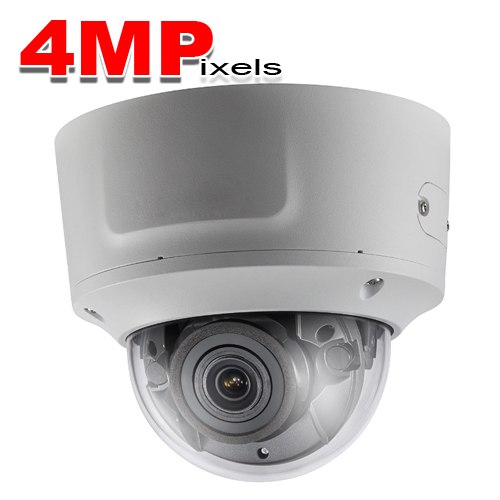

(IPS-2CD2742FWD-IZS) 4MP VF IR Motorized Zoom, Vandal-Proof Dome With Audio, Exterior
- Full HD 1080p real-time video
- 4 Megapixel (2688 x 1520) Resolution
- IR LEDs: up to 90ft
- Supports H.265
- Support onboard storage (up to 128GB)
- IP67 & IK10
- Vandal-proof
- Motorized Zoom
| Image Sensor | 1/3″ progressive scan CMOS |
| Min. illumination | 0.01 lux @ (F1.2, AGC ON), 0 lux with IR |
| Shutter time | 1/3s ~ 1/100,000s |
| Lens | 2.8 ~ 12mm @ F1.4, Angle of view: 88° ~ 29° |
| Day & night | ICR |
| digital noise reduction | 3D DNR |
| Wide dynamic range | 120dB |
| Angel adjustment | Pan: 0° ~ 355°, tilt 0° ~ 75° |
| Video compression | H.264 / MJPEG / H.264+ / H.265 / H.265+ |
| Max. image resolution | 2688 x 1520 |
| Frame rate | 30fps (2688 × 1520) |
| Audio | 1/1 |
| Network storage | NAS |
| Alarm | 1/1 |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos |
| System compatibility | ONVIF, PSIA, CGI |
| General functionalities | User authentication, watermark, dual stream |
| Communication interface | 1 RJ45 10M/ 100 M Ethernet interface |
| Onboard storage | Built-in Micro SD slot, up to 128 GB |
| Operating conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) humidity 95% or less (non-condensing) |
| Power supply | 12 VDC +/- 10%, PoE (802.3af) |
| Power consumption | Max. 12W |
| Impact protection | IK10 |
| Ingress protection level | IP67 |
| IR range | Up to 90ft |
| Dimensions | Ø 6.04″ x 5.24″ |
| Weight | 2.84 lbs. |
