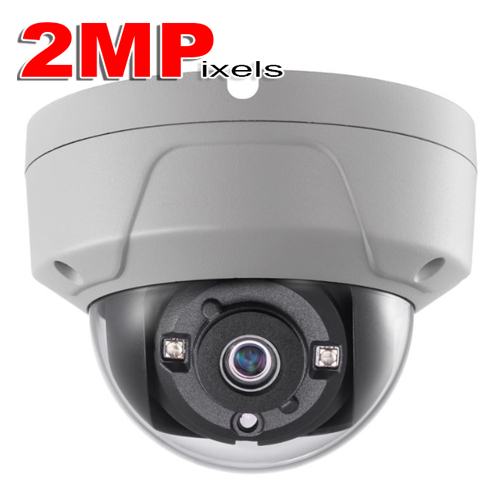

(IPS-2CD2120-I) 2MP 4mm Lens IP Vandal-Proof Mini Dome, Exterior
- 2 megapixel (1920 x 1080) High Resolution
- HD 1080p Real-time Video
- True Day / Night Auto Switch
- IP66 & IK10
- IR LEDs up to 100 ft
- Vandal-proof Housing
| Image Sensor | 1/3″ progressive scan CMOS |
| Min. illumination | 0.01 lux @ F1.2, AGC ON, 0 lux with IR |
| Shutter time | 1/30s ~ 1/100,000s |
| Lens | 4mm @ F2.0, angle of view 52° (2.8mm optional) |
| Lens mount | M12 |
| Day & night | ICR |
| Wide DynamicRange | DWDR |
| Video compression | H.264 / MJPEG |
| Bit rate | 32 Kbps ~ 16 Mbps |
| Dual stream | Yes |
| Max, image resolution | 2MP CMOS,(1920 x 1080) |
| Frame rate | 60 Hz 30 fps (1920 x 1080), 30 fps (1280 x 720) |
| Image settings | Saturation, brightness, contrast adjustable through client software or web browser |
| Network storage | NAS |
| Alarm trigger | motion detection, tampering alarm, network disconnect, IP address conflict, storage exception |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, 802.1x, Qos |
| System Compatibility | ONVIF, PSIA, CGI |
| General functionalities | Flickerless, heartbeat, mirror, user authentication, video mask, watermark |
| Communication interface | 1 RJ45 10M/ 100 M Ethernet interface |
| Operating conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) humidity 90% or less (non-condensing) |
| Power supply | 12 VDC +/- 10%, PoE (802.3af) |
| Power consumption | 7W Max. |
| Impact protection | IK10 |
| IR range | up to 100 ft |
| Dimensions | Ø 140 x 92mm (4.4″x3.2″) |
| Weight | 600g (1.32lbs) |
