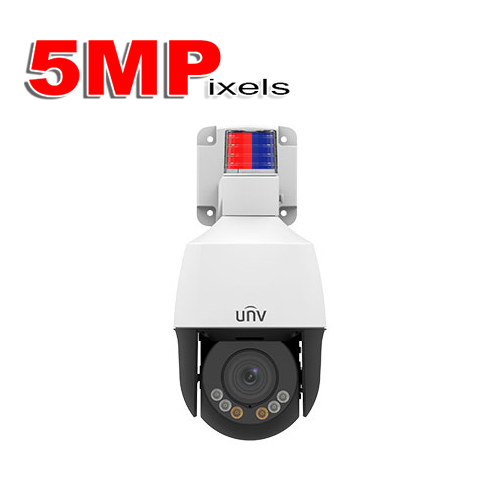

(IPC675LFW-AX4DUPKC-VG-NB) Uniview 5MP LightHunter Active Deterrence Mini PTZ Camera
• High quality image with 5MP, 1/2.7″CMOS sensor
• 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@25fps;3MP (2304*1296)@25fps; 2MP (1920*1080)@ 30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Built-in Mic
• Built-in Speaker
• Smart IR, Up to 50 m (164 ft) IR and 10m (33 ft) warm light distance
• Supports 256 G Micro SD card
• IP66 protection
• Support PoE power supply
| IPC675LFW-AX4DUPKC-VG | |||||
| Camera | |||||
| Sensor | 1/2.7″ progressive scan, 5.0 megapixel, CMOS | ||||
| Lens | 2.8~12mm，AF automatic focusing and motorized zoom lens | ||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 2.8mm | 63.0 | 25.2 | 12.6 | 6.3 | |
| 12mm | 270.0 | 108.0 | 54.0 | 27.0 | |
| Angle of View (H) | 30.6°~104.1° | ||||
| Angle of View (V) | 17.4°~54.9° | ||||
| Angle of View (O) | 34.4°~108.3° | ||||
| Shutter | Auto/Manual, shutter time: 1 s ~ 1/100000 s | ||||
| Minimum Illumination | Colour:0.003 lux (F1.6,AGC ON) 0 lux with IR |
||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52 dB | ||||
| IR Range | UP to 50m (164ft) | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Warm Light Range | UP to 10m (33ft) | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile | ||||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 25fps;3MP (2304*1296), Max 25fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps; |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 8 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Intelligent | |||||
| Smart intrusion Prevention | Cross Line, Intrusion, Enter Area, Leave Area detection;Motion detection ; | ||||
| Events | |||||
| Basic Detection | Motion detection, Tampering alarm, Audio Detection | ||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U, G.711A | ||||
| Two-way Audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8 KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL | ||||
| Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API | ||||
| Client | EZStation EZView EZLive |
||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||
| Pan & Tilt | |||||
| Pan Range | 0°~345° | ||||
| Pan Speed | 0.1°/s ~ 50°/s | ||||
| Preset speed: 50°/s | |||||
| Tilt Range | -10~110° | ||||
| Tilt Speed | 0.1° ~ 40°/s | ||||
| Preset speed: 40°/s | |||||
| Number of Presets | 256 | ||||
| Patrol | Preset patrol, Route patrol | ||||
| Interface | |||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Built-in Mic | Supported | ||||
| Built-in Speaker | Supported | ||||
| Alarm Light | Supported | ||||
| Certifications | |||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE802.3 at) | ||||
| Power consumption: Max 18 W | |||||
| Dimensions (Ø x H) | Φ133mm*269.4mm (Φ5.2”x 10.6”) | ||||
| Net Weight | 0.87 kg (1.92lb) | ||||
| Gross Weight | 1.13 kg (2.49lb) | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) | ||||
| Strorage Environment | -20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing) | ||||
| Surge Protection | 4KV | ||||
| Ingress Protection | IP66 | ||||
| Reset Button | Supported | ||||
